Dense brush
Mixed overgrowth and heavy brush around open land, property edges and neglected areas.
Brush clearing
Forestry & Vegetation
Forest Mulcher
For brush, shrubs, saplings and dense woody vegetation
Built for woody
vegetation

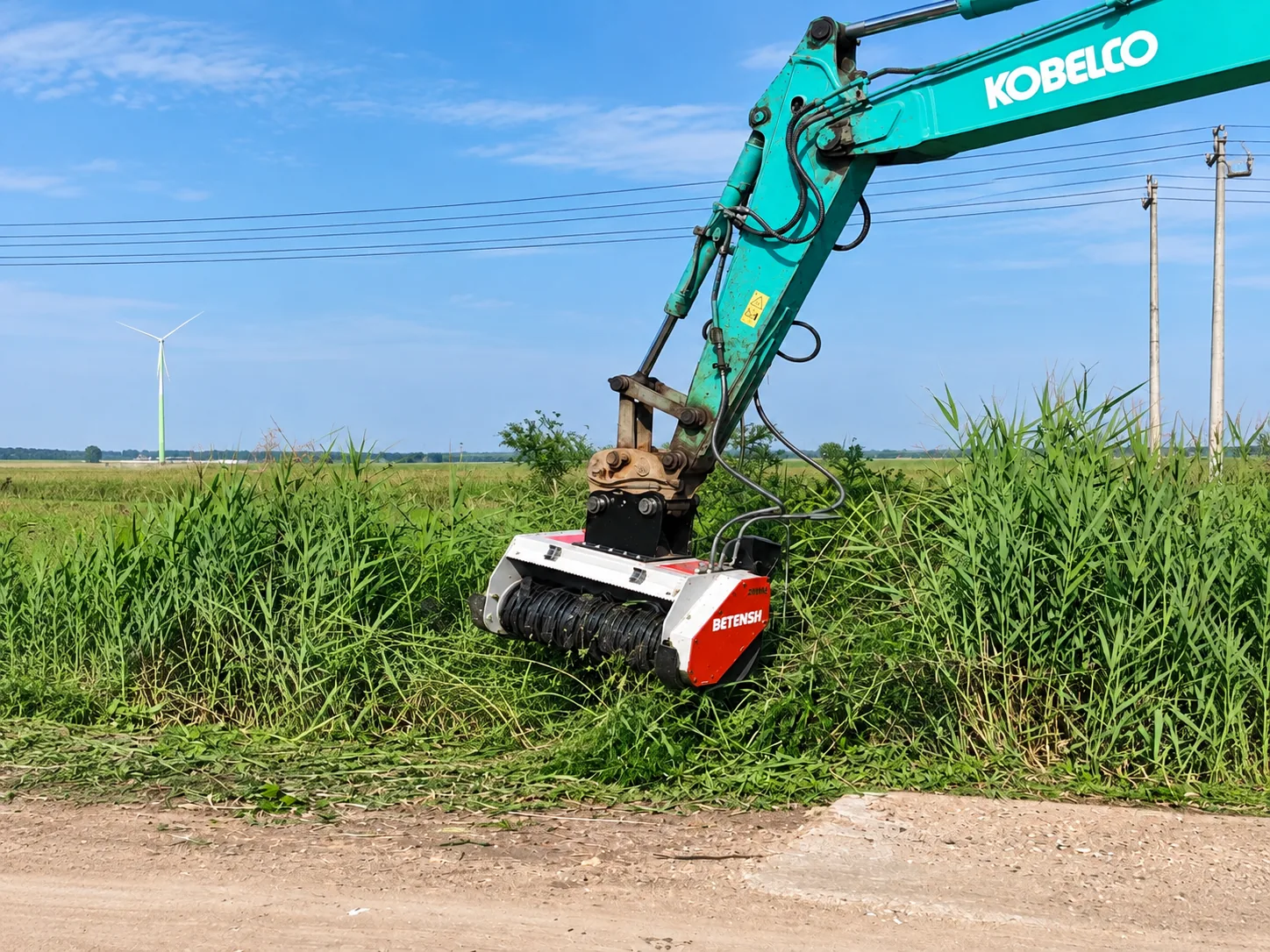

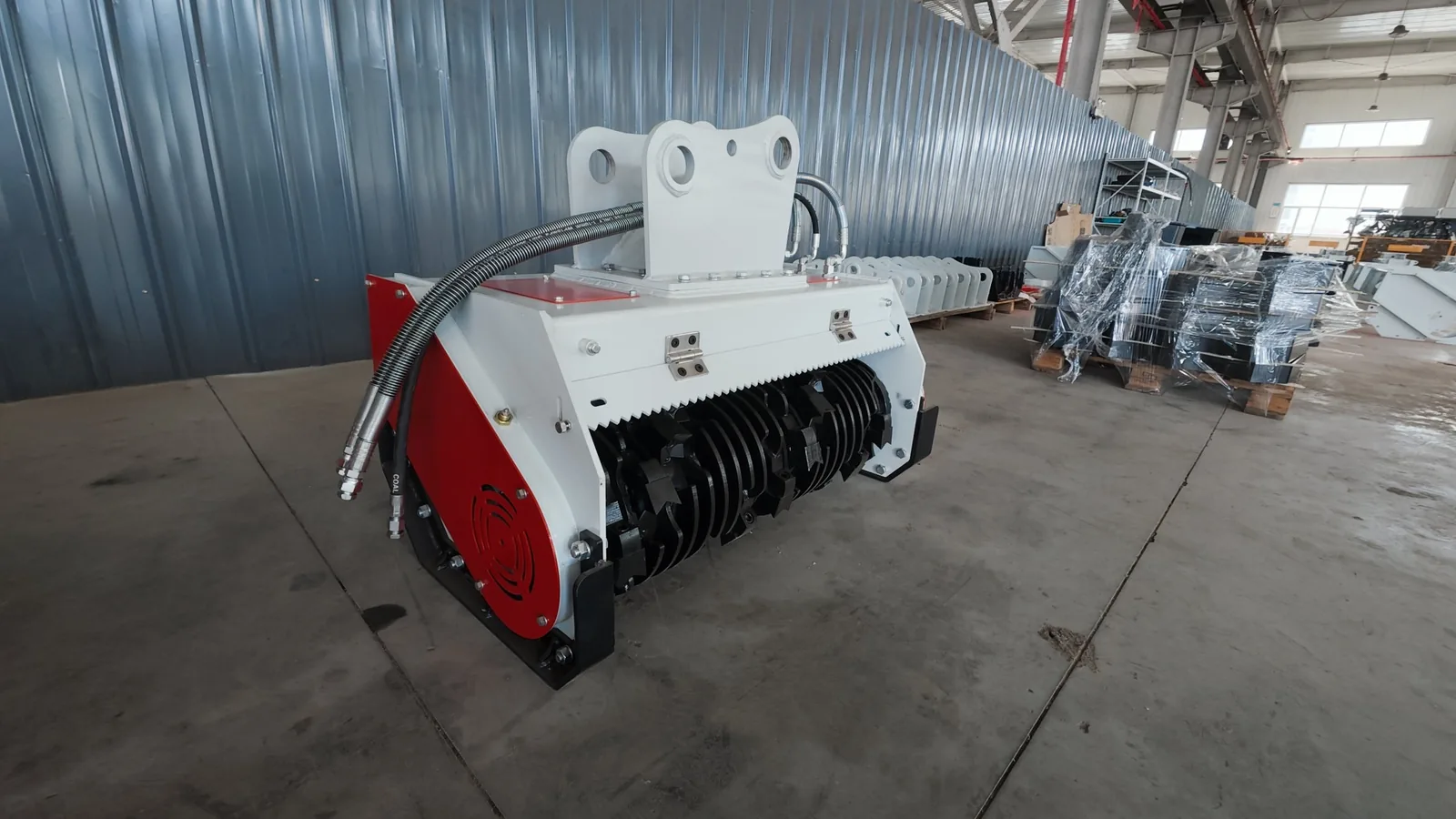

The BETENSH Forest Mulcher is an excavator-mounted mulching head for clearing brush, shrubs, saplings and dense growth along field edges, roadsides, ditches and managed land.
A high-speed rotor with replaceable working tools breaks vegetation down as the machine positions the head through the work area.
Where it works
Shrubs & saplings
Young woody growth and repeated regrowth where a stronger rotor-and-tool system is required.
Woody growthDitch & roadside
Vegetation along drainage channels, road edges and other areas that benefit from boom reach.
Edge workField-edge clearing
Dense growth around agricultural boundaries, utility corridors and managed land.
Land managementChoose the model for the machine and clearing work
Describe the vegetation
Start with brush, shrubs, saplings or other woody growth, its size and the site conditions. For ordinary grass and soft-vegetation maintenance, compare the Grass Cutter / Flail Mower.
Match the carrier before choosing width
BFM-600, BFM-700 and BFM-800 share the listed 3–5 ton carrier range but have different widths and weights. After machine matching, choose around working space, the clearing area and the width you want to cover. Wider is not automatically better; the larger BFM models have their own carrier ranges in the table.
Confirm the mounting arrangement
Confirm the mounting arrangement for the exact excavator model. Start with the machine and clearing work; detailed measurements can follow.
MODELS & SPECIFICATIONS
Pressure15–30 MPa
Rotor speed2500–3000 r/min
| Model | Motor displacement | Excavator | Weight | Tool groups |
|---|---|---|---|---|
| BFM-6000.6 m working width | 12 cc/r | 3–5 ton | 240 kg | 14 |
| BFM-7000.7 m working width | 12 cc/r | 3–5 ton | 320 kg | 16 |
| BFM-8000.8 m working width | 12 cc/r | 3–5 ton | 340 kg | 18 |
| BFM-10001.0 m working width | 23 cc/r | 6–8 ton | 480 kg | 24 |
| BFM-12001.2 m working width | 28 cc/r | 8–12 ton | 530 kg | 28 |
| BFM-14001.4 m working width | 32 cc/r | 12–15 ton | 645 kg | 34 |
| BFM-16001.6 m working width | 80 cc/r | ≥20 ton | 720 kg | 38 |
Final model selection depends on the exact machine model, mounting dimensions, working width and vegetation conditions rather than tonnage alone.
PRODUCT DESIGN

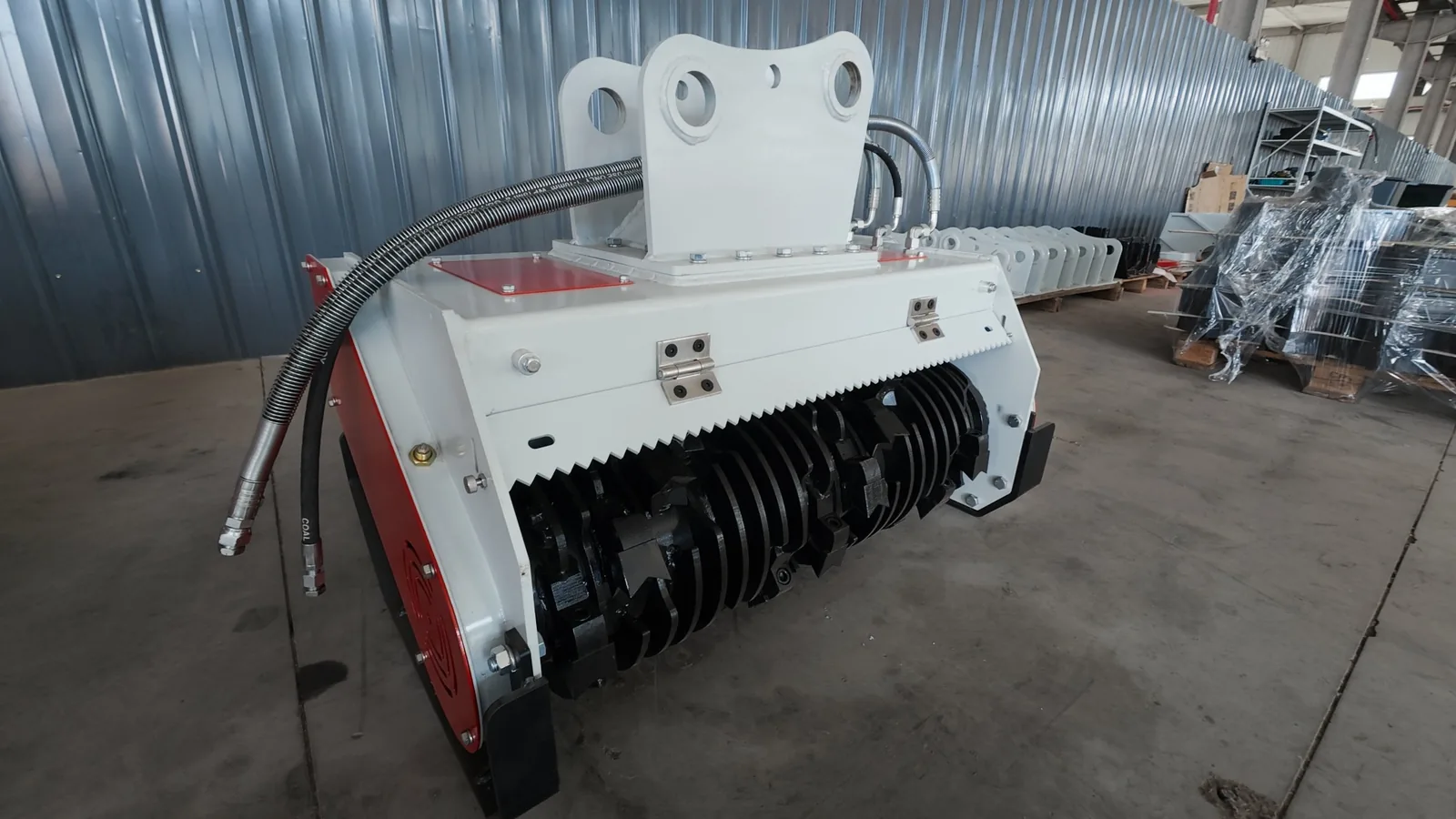

Rotor & replaceable working tools
Individually replaceable blades.

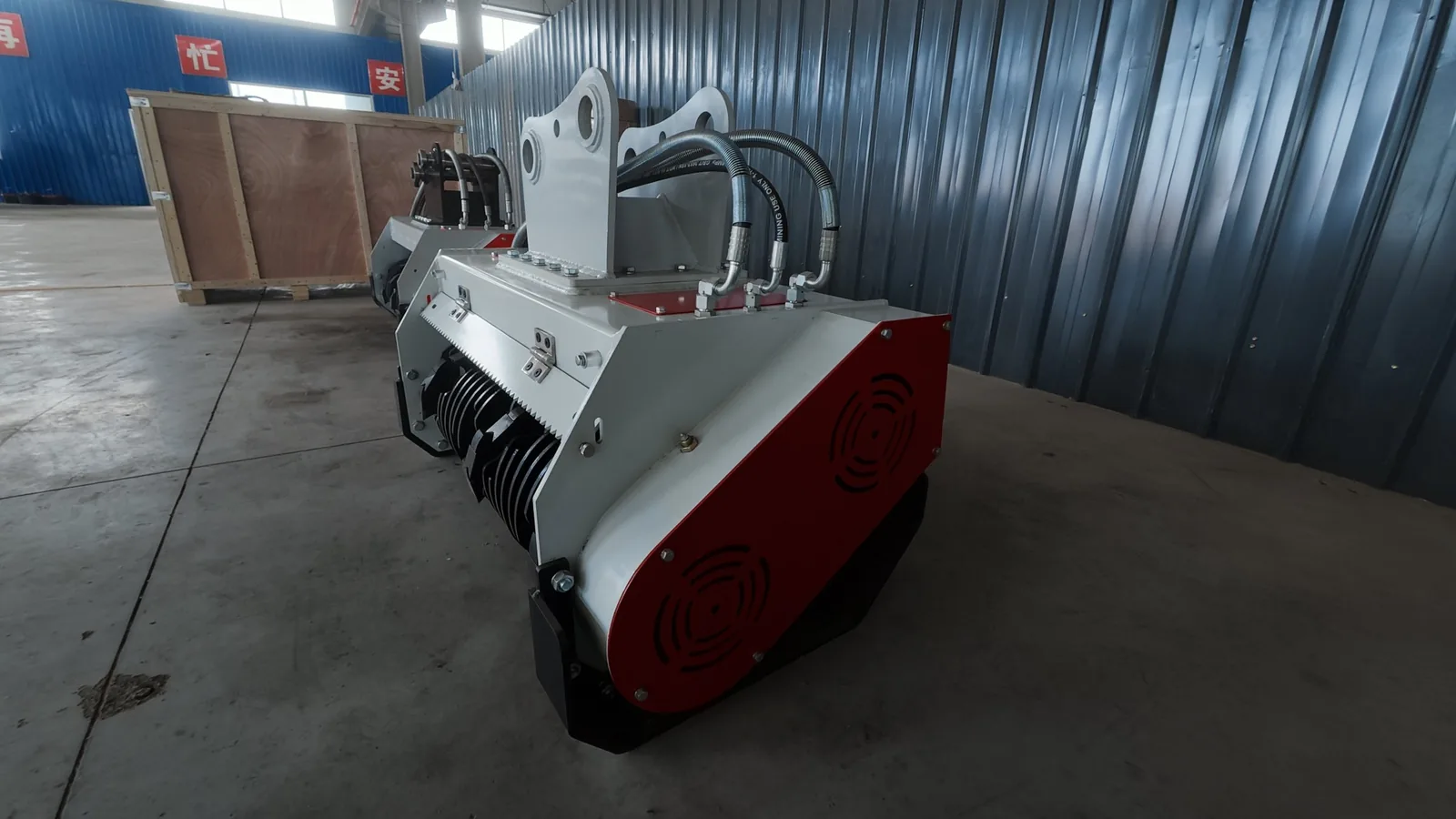

Mounting, hose routing & service access
The upper mounting structure is matched to the carrier interface, while the hose layout stays clear of the working opening.
Bolted side and top covers keep key areas accessible for routine inspection and service.

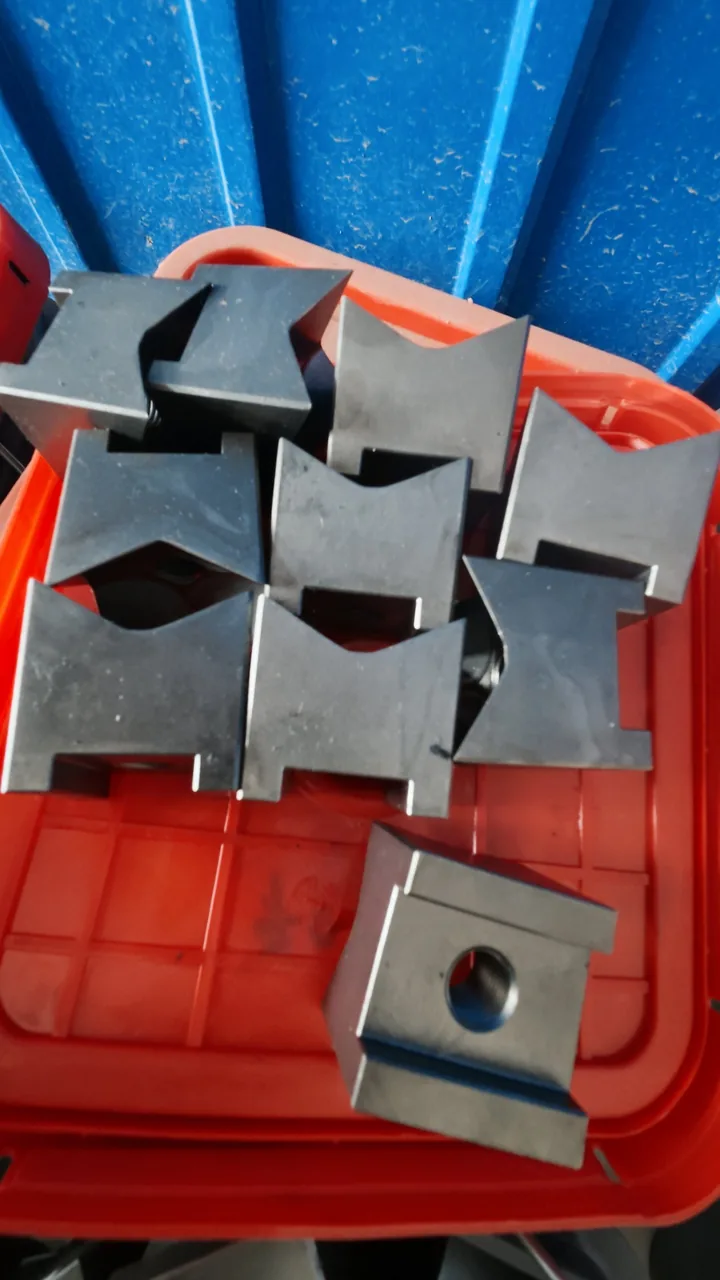

Working tools
Replaceable pieces are treated as service items and can be planned with the expected workload.

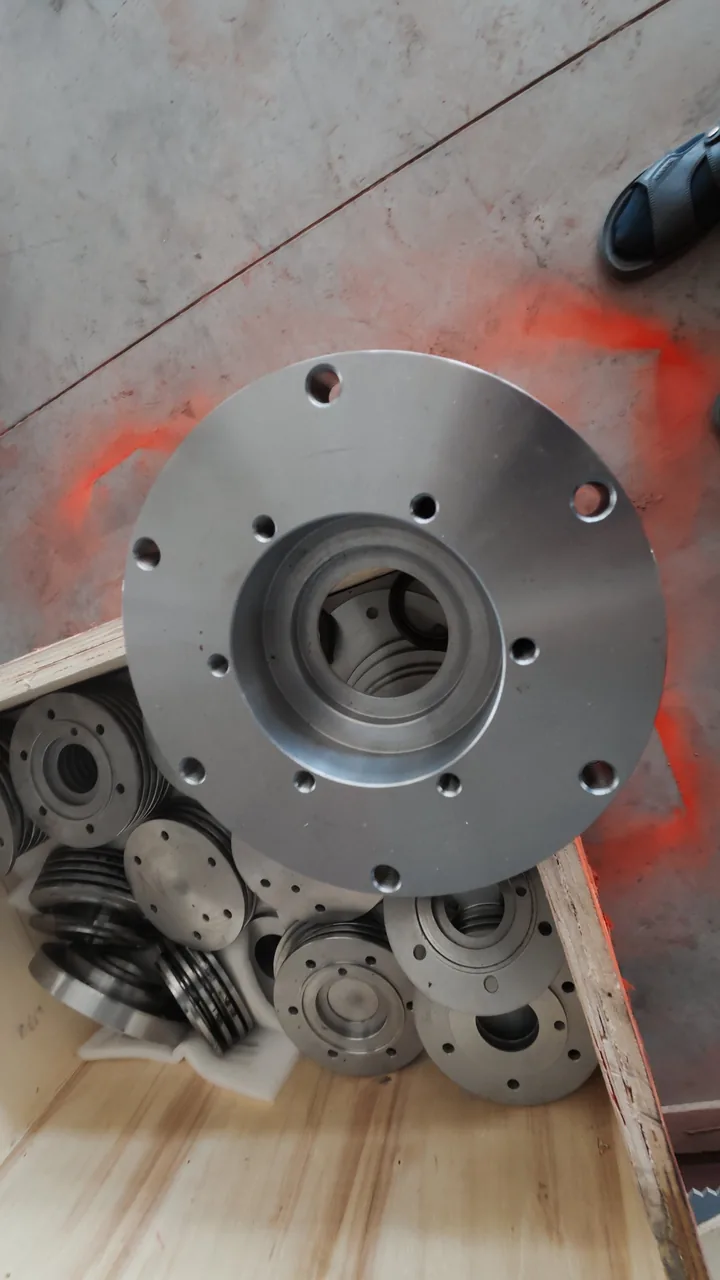

Machined rotor-end components
Machined end components form part of the rotor assembly and support accurate fit-up during manufacture and service.
REAL FIELD WORK
Brush, ditch and field-edge clearing in real operating conditions.

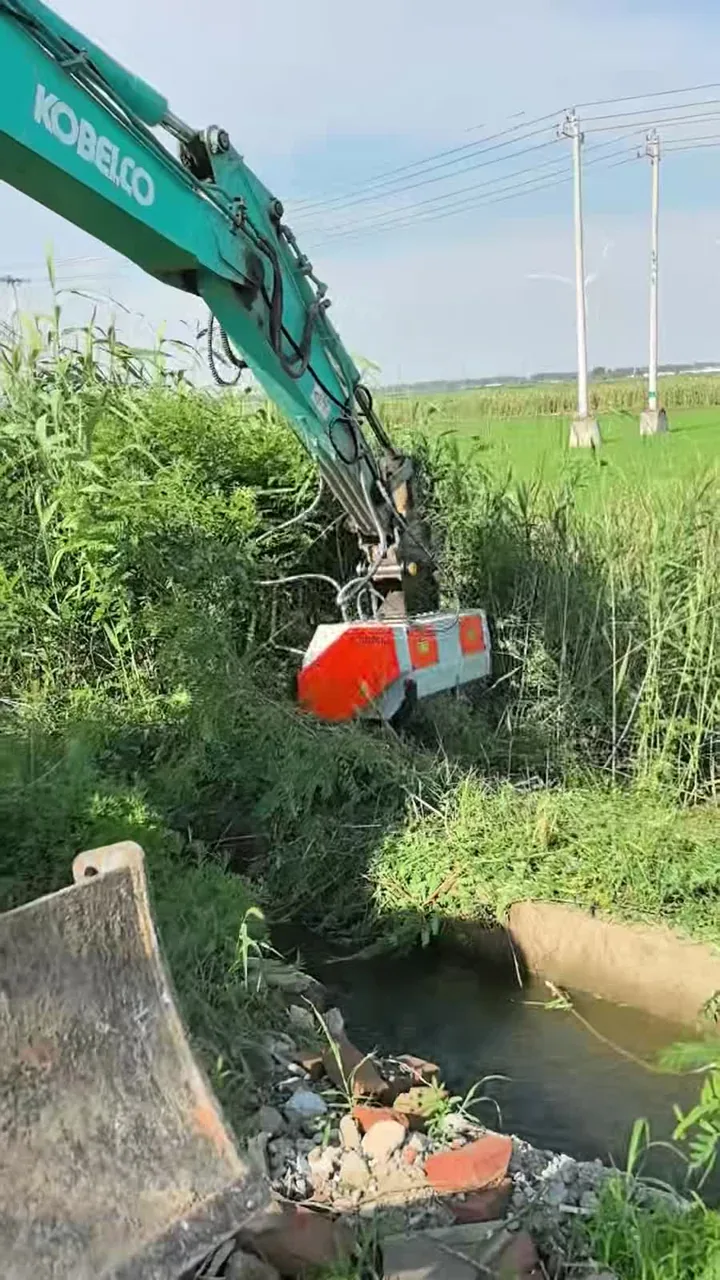

Ditch and field-edge clearing
The boom positions the mulcher into dense growth along the edge while the working head stays visible to the operator.

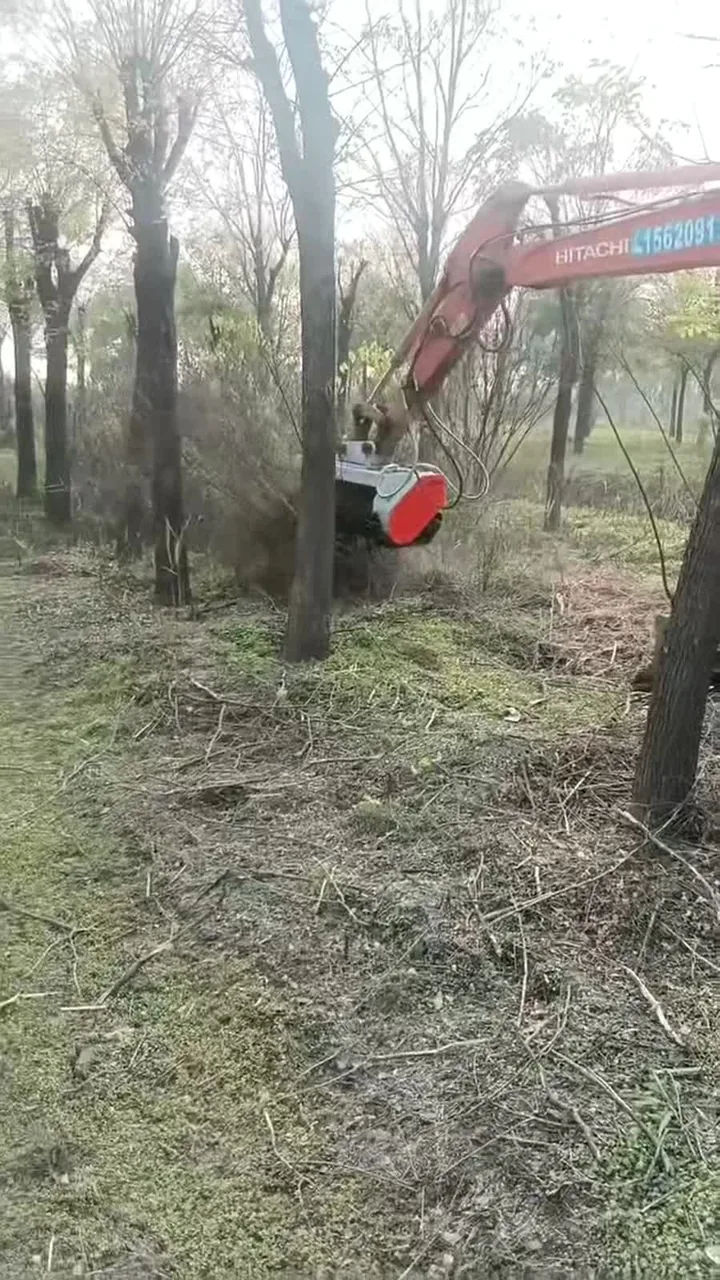

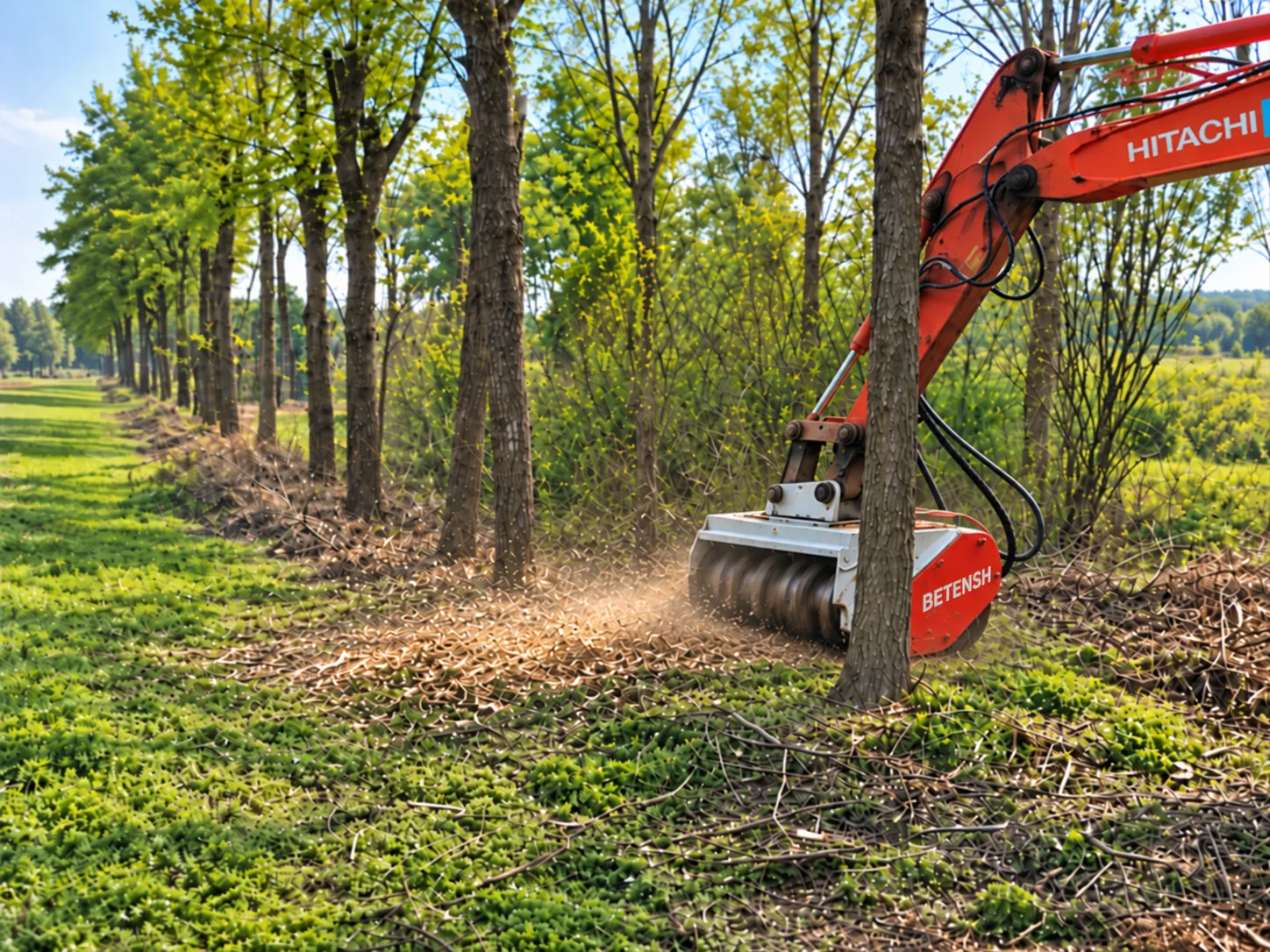

Woody vegetation clearing
The mulcher works through heavier growth in a wooded operating area while the original portrait footage remains intact.
SUPPORT & MAINTENANCE
Plan wear parts around expected use
Replaceable working tools are service items. Spare quantities can be planned around expected workload, vegetation conditions and service interval.
Remote support that stays practical
BETENSH can support installation, inspection and troubleshooting with photos, video and screen-recorded guidance when useful.
Qualified component support within one year
For qualified covered component issues within one year, BETENSH can provide the replacement component without charging for the component itself where the issue qualifies for support.
Courier and international transport are normally borne by the Customer unless otherwise agreed.
FAQ
Brush, shrubs, saplings, dense woody growth, ditch-side vegetation, roadside clearing and field-edge maintenance.
Its primary use is woody and heavier vegetation. Final suitability should be confirmed against the actual vegetation and site conditions.
The rotor carries replaceable tools that repeatedly engage vegetation as the head moves through the work area.
Yes. Worn blades can be replaced individually.
Start with the exact machine model, target vegetation and preferred working width. Confirm mounting dimensions for the selected head rather than using tonnage alone.
Replaceable working tools are the primary service items. Spare planning should reflect expected workload and vegetation conditions.
BETENSH provides online technical support and can assist with installation, inspection and troubleshooting using photos, video and step-by-step guidance where appropriate.
ASKABOUTTHISPRODUCT
Share the machine model, vegetation type and working conditions. We will help narrow the configuration.
