Grass Cutter / Flail Mower
Grass & soft vegetation
- Field mowing
- Roadside maintenance
- Pasture and grass maintenance
- Taller soft grass and reeds with the intake set appropriately
Best for ordinary mowing work
Forestry & Vegetation
Grass Cutter / Flail Mower
For grass, roadside maintenance and soft vegetation with stems generally within 2 cm
Mowing, withoutovercomplicating it

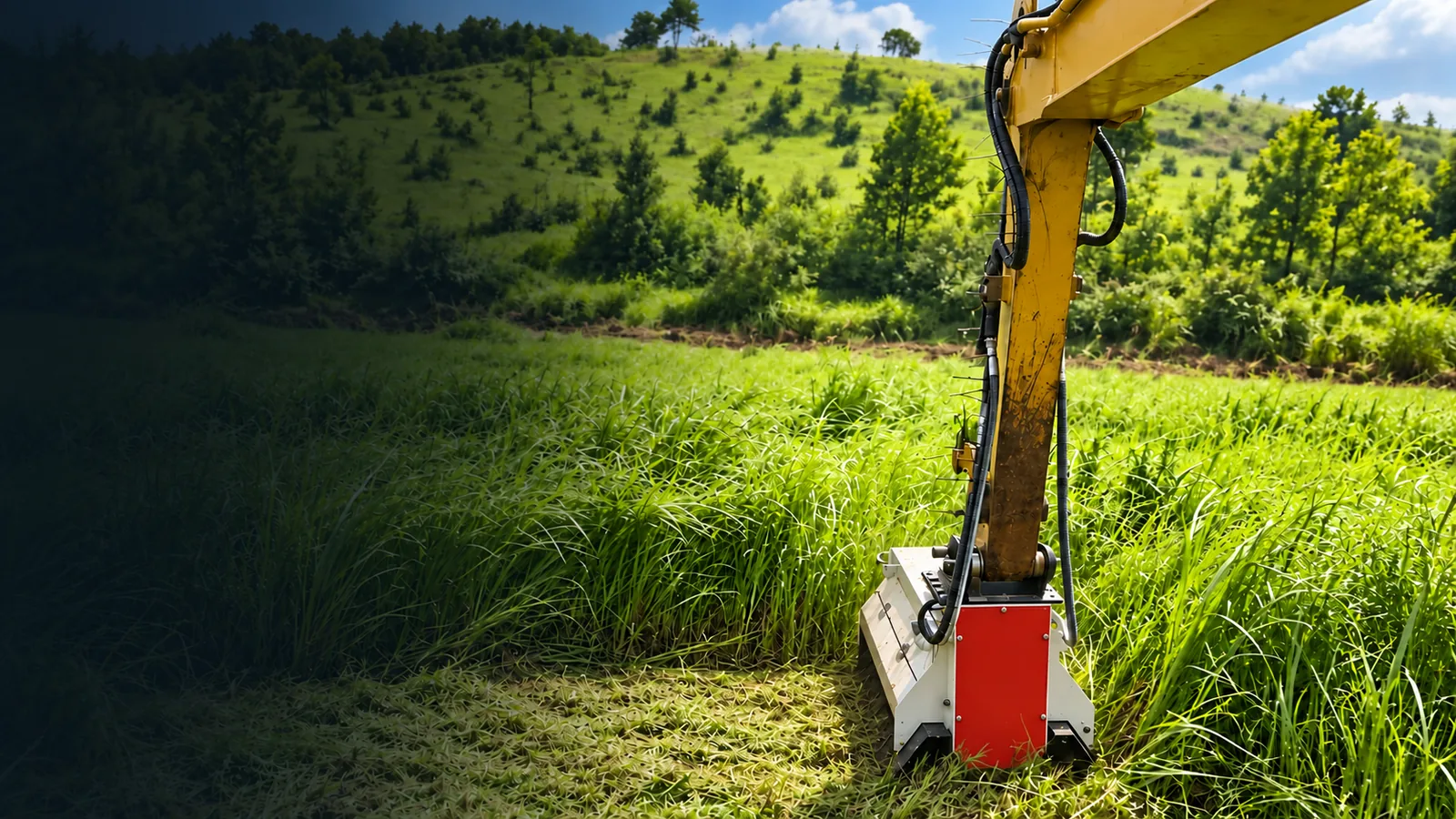

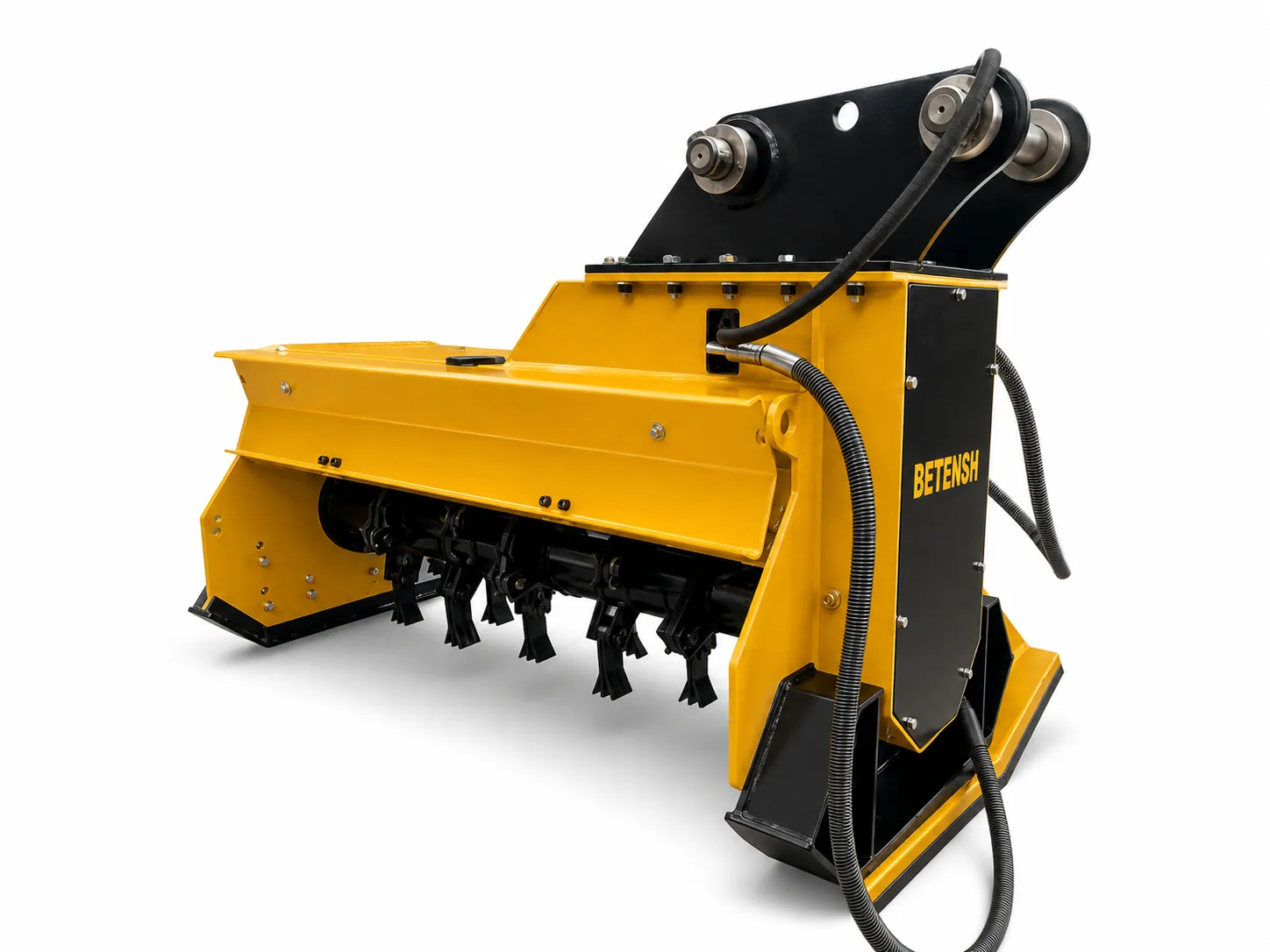

The BETENSH Excavator Grass Cutter / Flail Mower is a belt-driven attachment for field mowing, roadside maintenance and other soft-vegetation work.
For heavier woody vegetation, move up to a Forest Mulcher →
Forest Mulcher
Woody & heavier vegetation
- Woody shrubs
- Saplings
- Heavy brush
- Heavier vegetation that rapidly wears mowing blades
A Forest Mulcher can cut grass, but it is less efficient for ordinary mowing
MODELS & SPECIFICATIONS
Common operating values are shown once, and model rows only carry what changes.
Pressure15–30 MPa
Rotor speed2500–3000 r/min
| Model | Hydraulic flow | Excavator | Weight | Blade groups |
|---|---|---|---|---|
| BGC600600 mm working width | 10 L/min | 1–3 ton | 120 kg | 10 |
| BGC800800 mm working width | 10 L/min | 3–5 ton | 132 kg | 14 |
| BGC10001000 mm working width | 12 L/min | 5–6 ton | 230 kg | 18 |
| BGC12001200 mm working width | 12 L/min | 6–10 ton | 300 kg | 22 |
| BGC14001400 mm working width | 28 L/min | 10–18 ton | 418 kg | 24 |
| BGC16001600 mm working width | 40 L/min | 20 ton | 500 kg | 28 |
| BGC18001800 mm working width | 80 L/min | ≥20 ton | 552 kg | 32 |
| BGC20002000 mm working width | 80 L/min | ≥20 ton | 600 kg | 36 |
Final model selection should be confirmed against the excavator model, hydraulic flow, pressure and mounting dimensions rather than tonnage alone
PRODUCT DESIGN

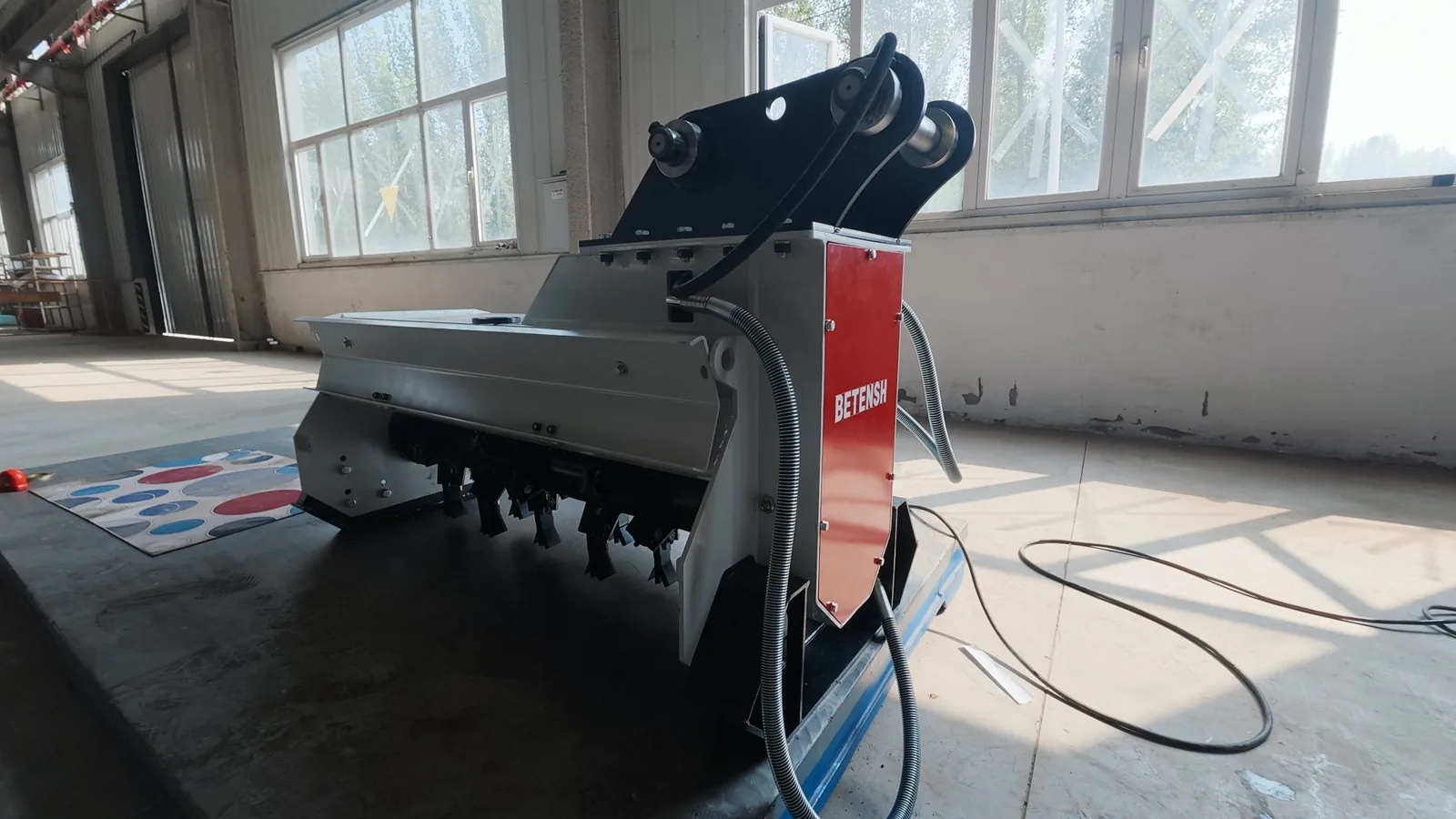

Power transfer & rotor support

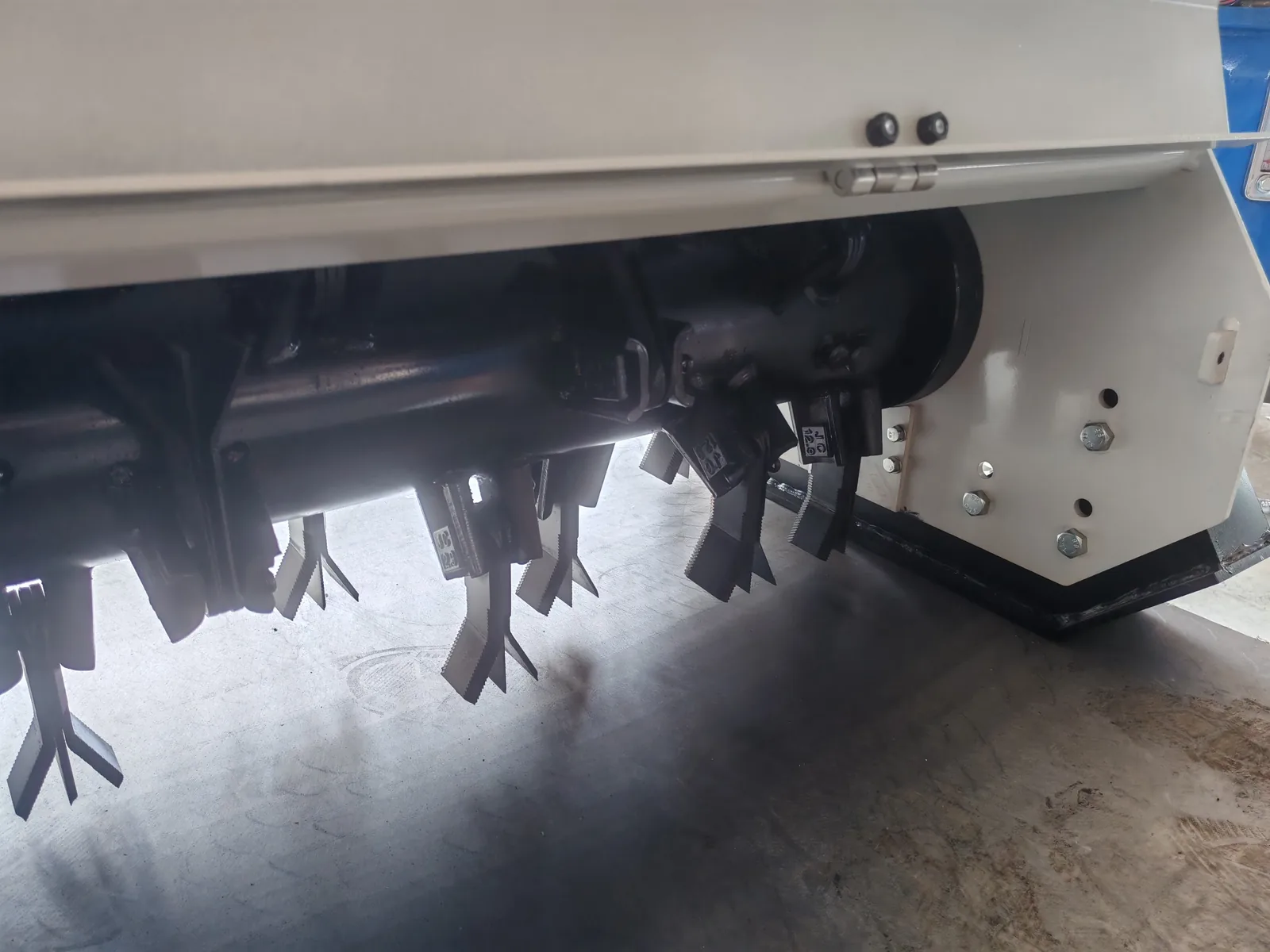

Excavator hydraulics drive the hydraulic motor, which transfers power through the belt transmission to the horizontal rotor and Y blades.
Belt drive keeps belt replacement straightforward and provides a degree of shock buffering that helps reduce direct shock transfer toward the hydraulic motor. The rotor shaft is supported on both sides.

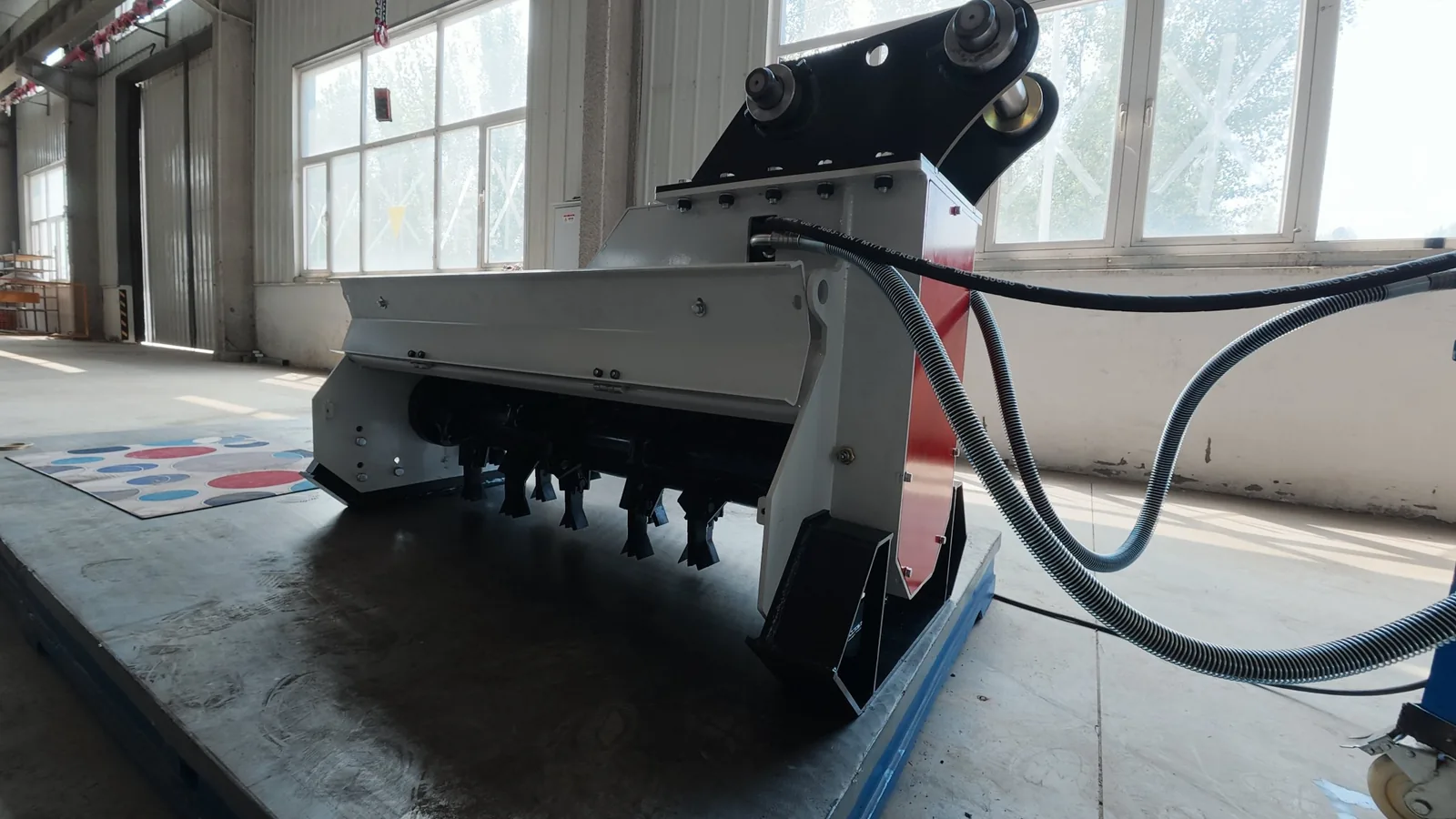

Front intake for taller soft vegetation
For ordinary grass, use the normal opening position. For taller soft grass and reeds, the front hood can be fixed higher with the adjustment bolts to create a larger adjustable front intake opening.
This is an intake adjustment, not an adjustable cutting-height claim. It does not convert the Grass Cutter into a woody-brush mulcher.

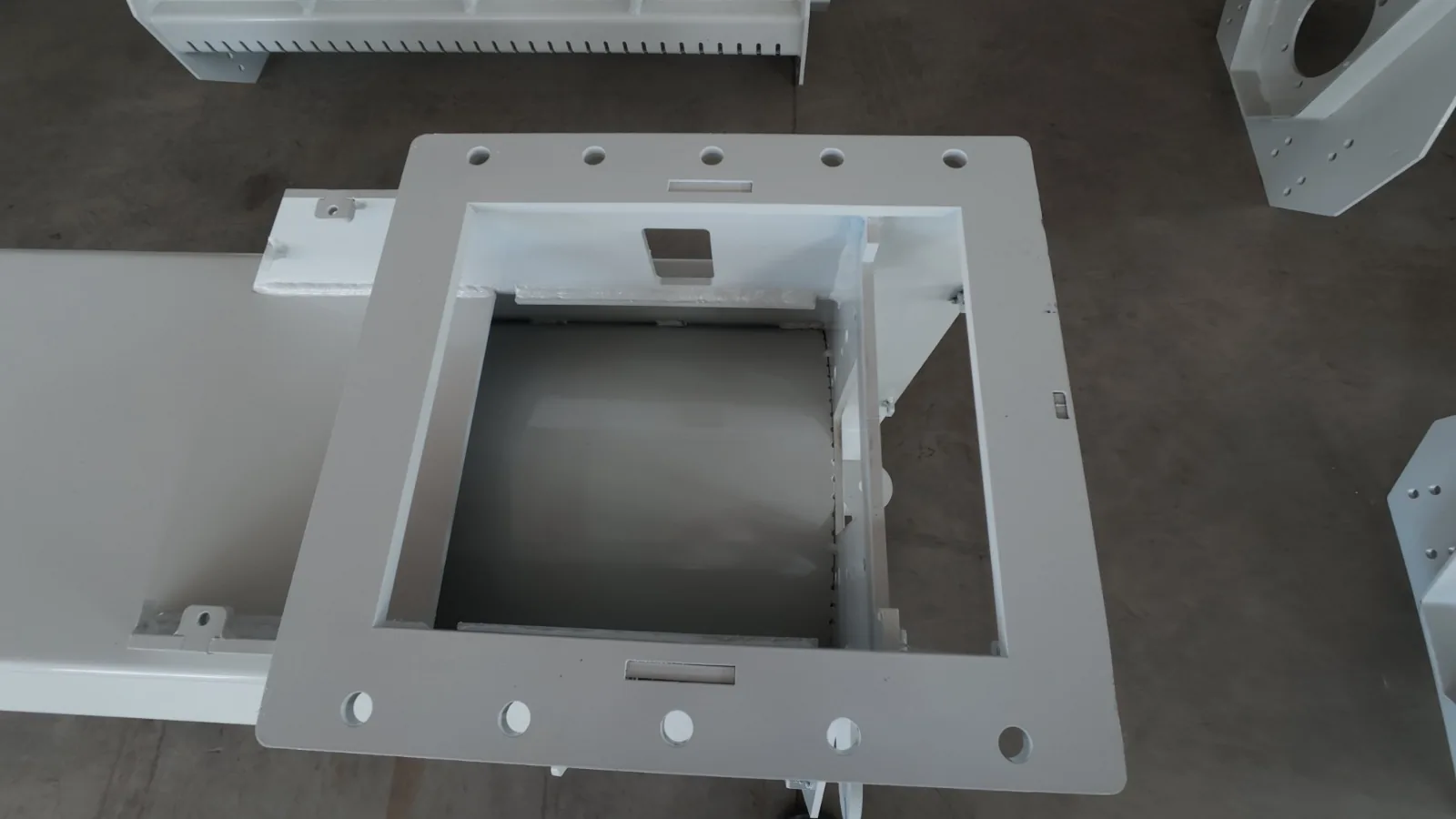

Double-layer protection
Two-layer shielding helps reduce outward debris and splash risk.

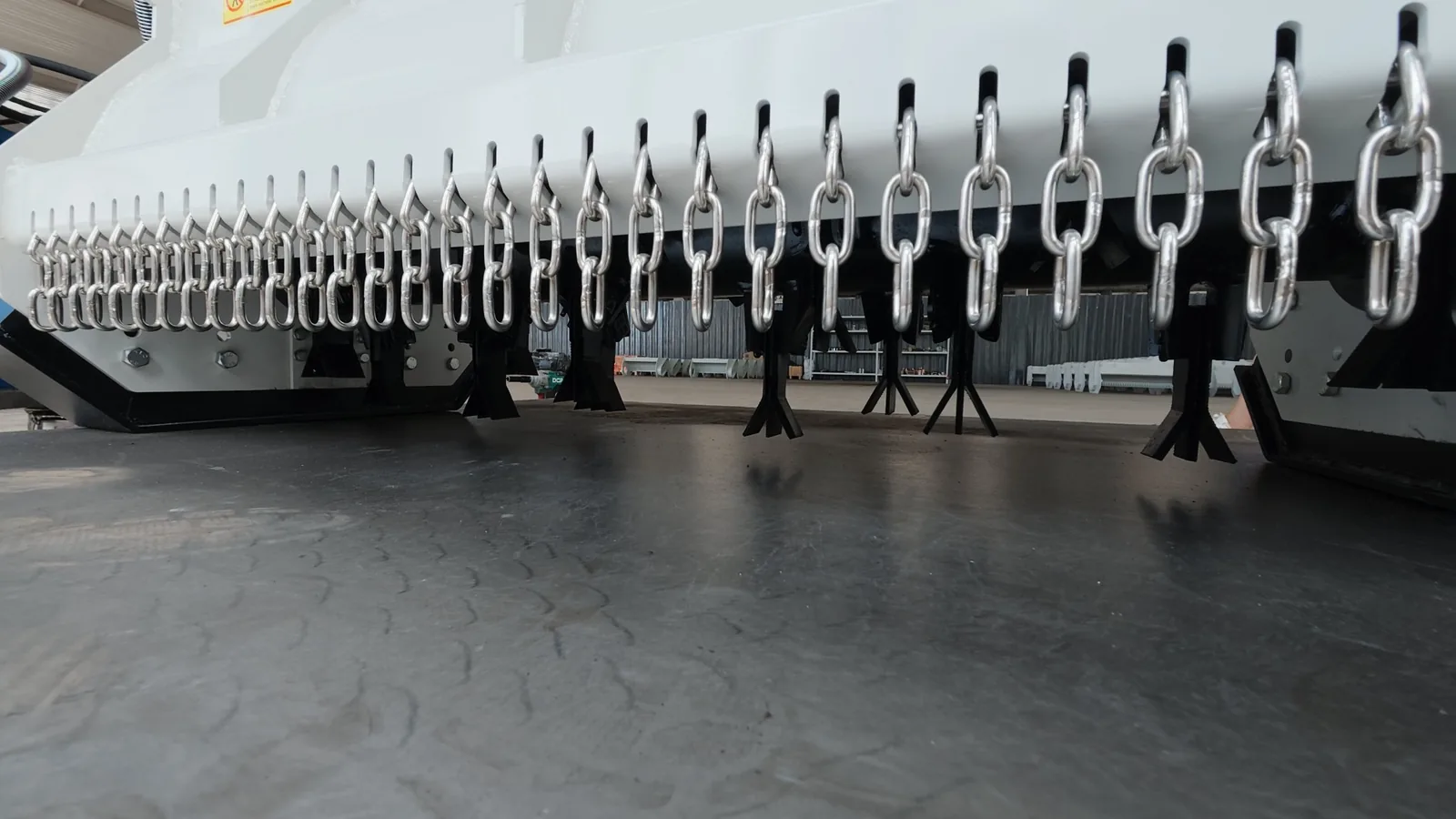

Protective chain curtain
The front chain curtain provides an additional debris-control layer that helps reduce direct outward discharge and splash.
REAL FIELD WORK
Field mowing and roadside vegetation maintenance in real operating conditions.
The Grass Cutter is intended for field mowing, roadside and edge maintenance, pasture and grass maintenance, and other soft vegetation. Taller soft grass and reeds can be handled with the intake set appropriately.
It is not intended for woody shrubs, saplings or heavy-brush mulching.

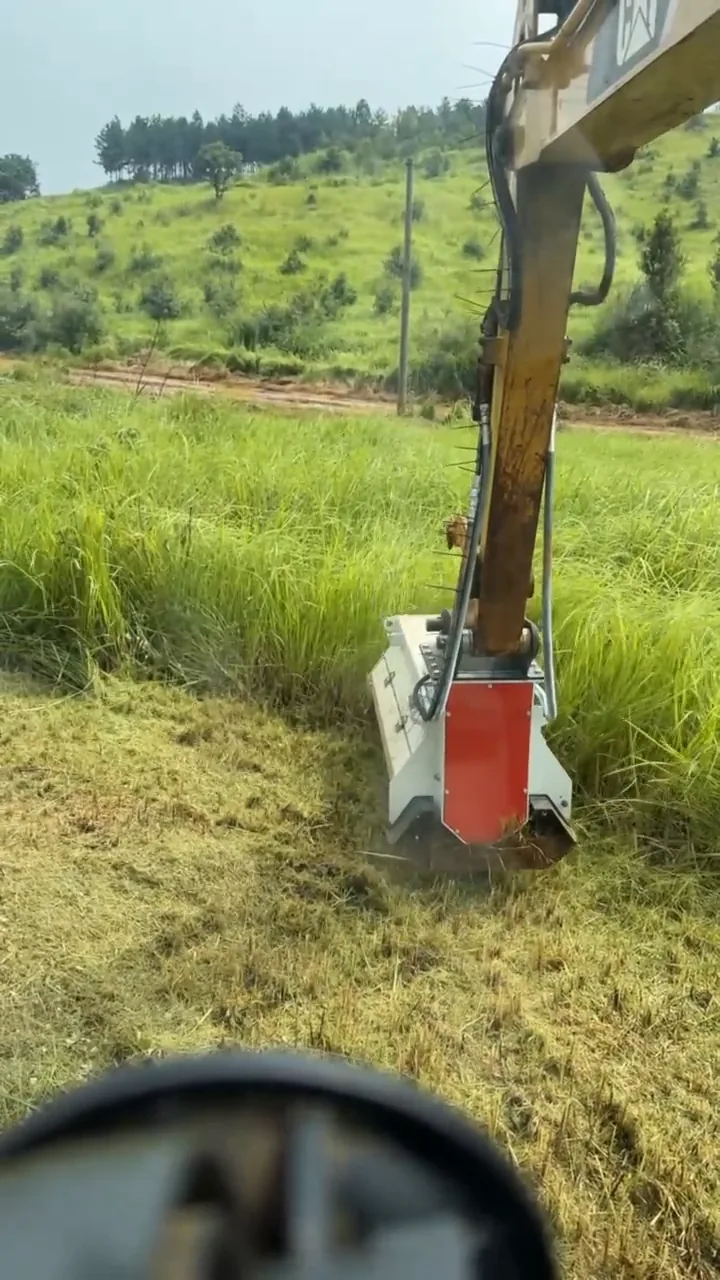

Field mowing in real conditions
Grass and soft vegetation enter the mowing head as the excavator positions the attachment along the field edge.

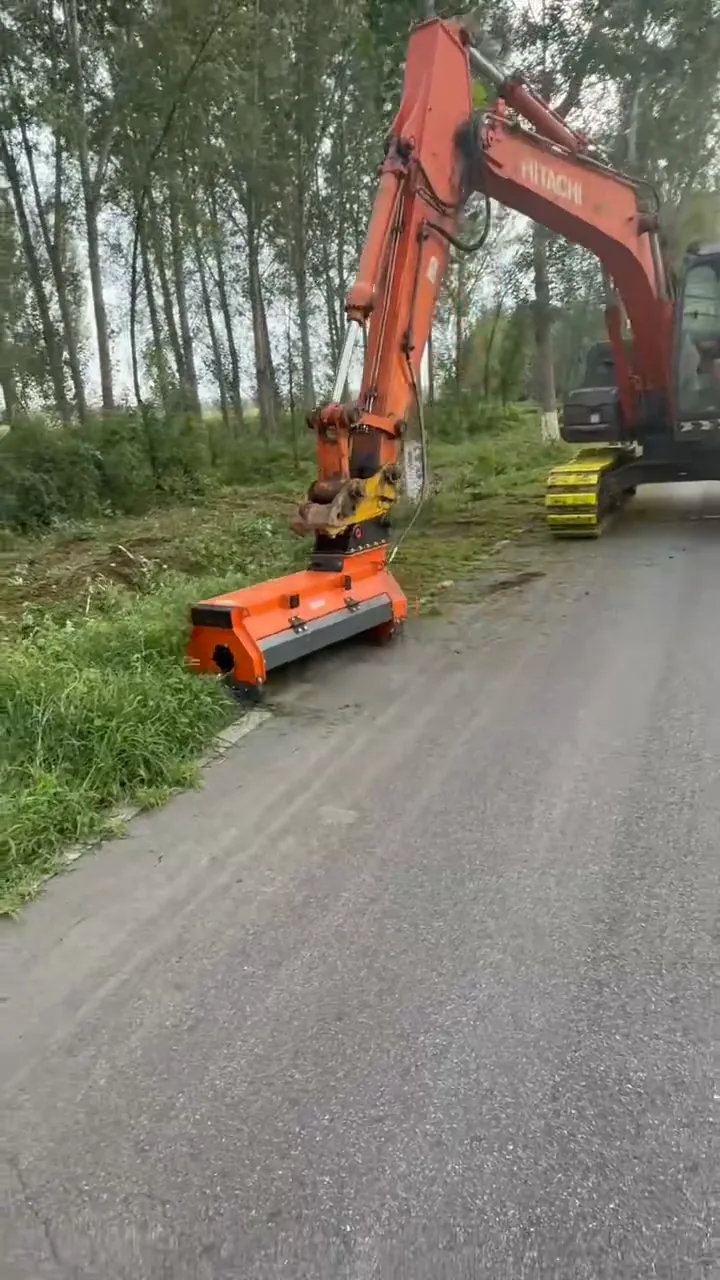

Roadside & edge maintenance
Excavator boom reach positions the mowing head for roadside and edge vegetation maintenance.
SUPPORT & MAINTENANCE
Plan common wear parts around expected use
Replaceable mowing blades are the primary wear item, and woody or heavy vegetation accelerates blade wear.
Customers may prepare approximately 6–12 months of common wear parts depending on expected use, with blades as the primary spare recommendation and an optional spare belt also worth preparing.
Remote support that stays practical
24/7 online technical support covers operating and adjustment questions. BETENSH can provide screen-recorded step-by-step guidance where useful and remote troubleshooting using Customer photos and operating information.
Qualified component support within one year
For covered component issues within one year, the replacement component itself may be supplied without component charge where the issue qualifies for support.
Courier / international transport is normally borne by the Customer unless otherwise agreed. Larger replacement shipments may be delivered domestically to an agreed Chinese port or forwarder; international freight, customs clearance and destination-side charges are handled separately.
FAQ
Field mowing, roadside maintenance, pasture and grass maintenance, and other soft-vegetation work.
On this page, Grass Cutter / Flail Mower refers to the same belt-driven mowing attachment using a horizontal rotor and Y blades; it is not the same product category as a Forest Mulcher.
Yes, where the vegetation remains soft. Raising the front intake opening can help feed taller grass and reeds.
Grass and soft vegetation with stems generally within 2 cm are recommended.
It is not recommended for woody shrubs, saplings or heavy brush because the lighter mowing blades wear much faster.
Choose the Grass Cutter for ordinary mowing and soft vegetation, and choose the Forest Mulcher for woody or heavier vegetation.
Confirm the excavator make and model, hydraulic flow, pressure, mounting dimensions or pin diameter, application and preferred working width rather than using tonnage alone.
Blades are the primary wear part, an optional spare belt can be prepared, and BETENSH provides online technical support plus qualified covered-component support within one year.
ASKABOUTTHISPRODUCT
Share your excavator model, hydraulics, mounting dimensions and target vegetation
